GUS-834/10550 Straight Radiator Hose for JCB Large Cooling Circuits
JCB Code: JCB-007 | OEM: GUS-834/10550 | Brand: GEARUP SUPPLY | Origin: Hungary
Material: EPDM Rubber with Synthetic Fiber Fabric Reinforcement | Temp Range: -40°C 至 +125°C（短时+135°C）
Compatible Models: JCB Construction Machinery — Large-Bore Cooling Circuit Connections | Note: Straight design; verify diameter with physical sample

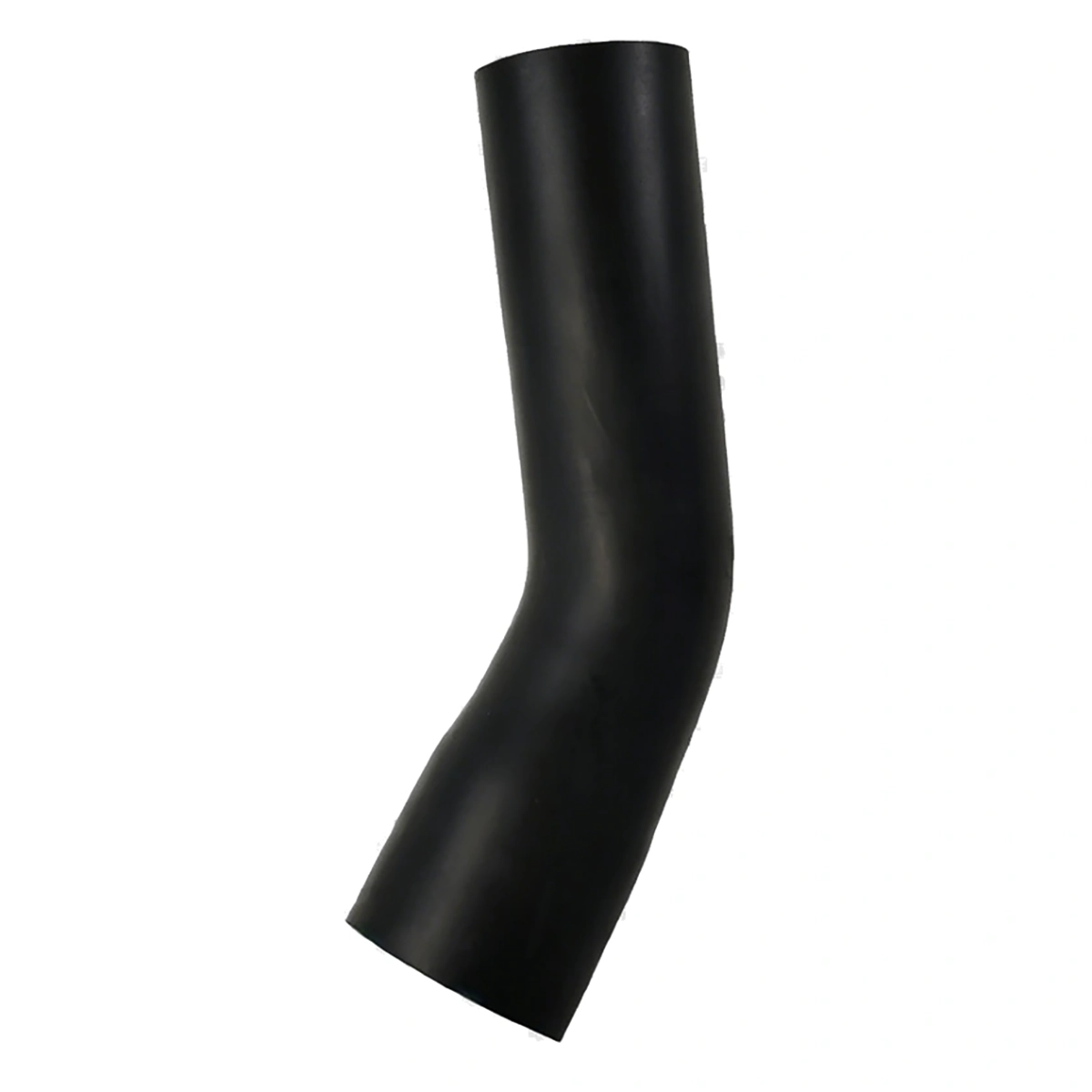

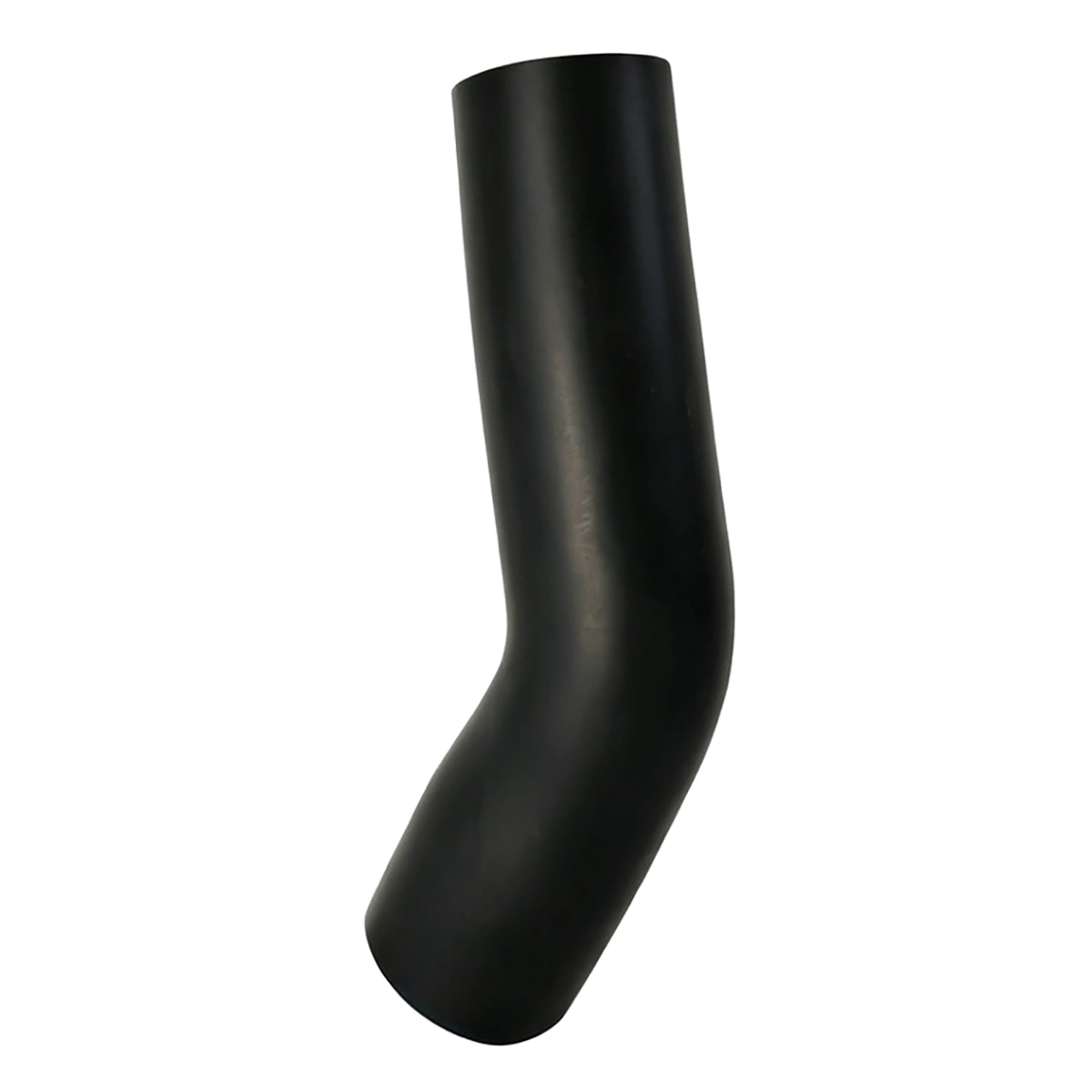

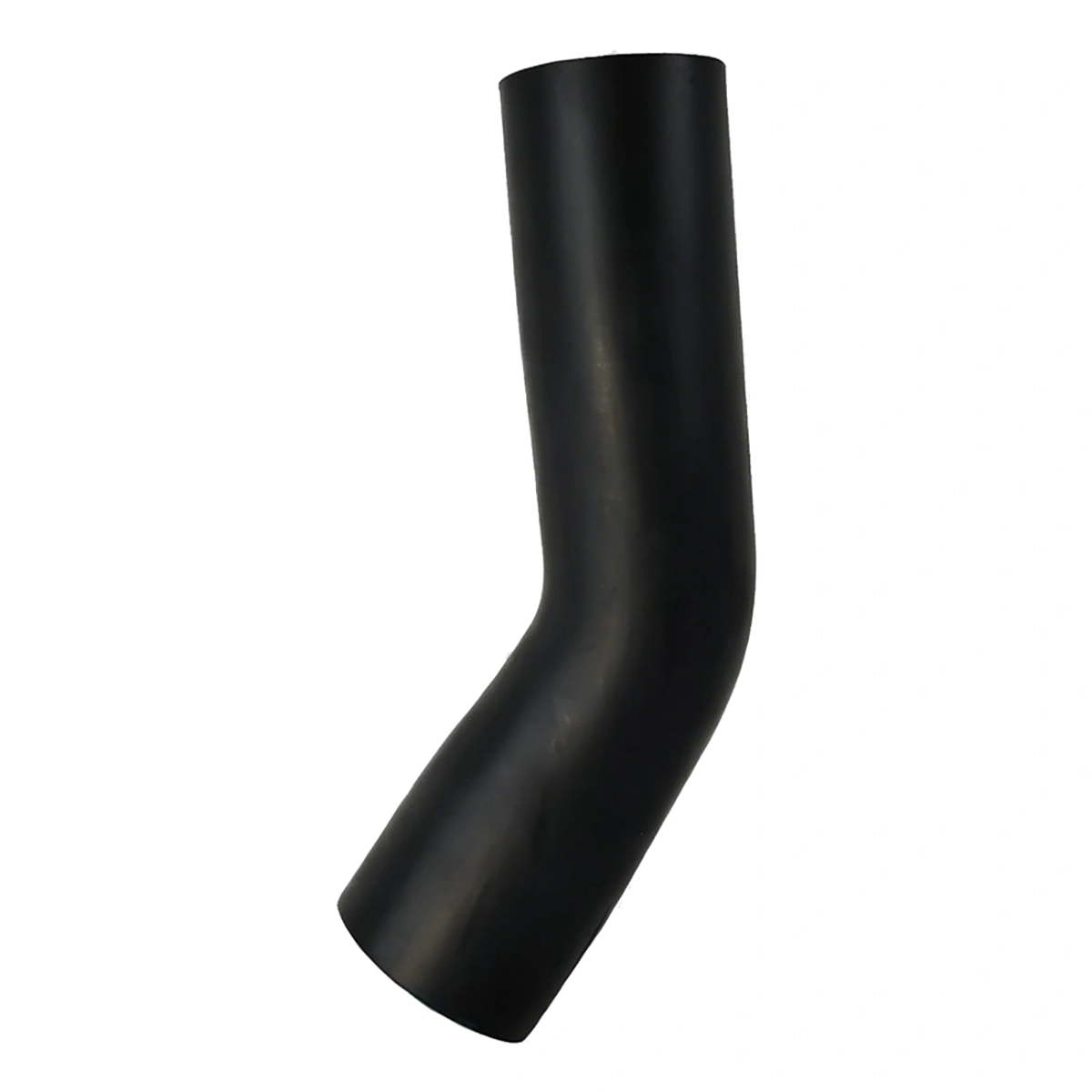

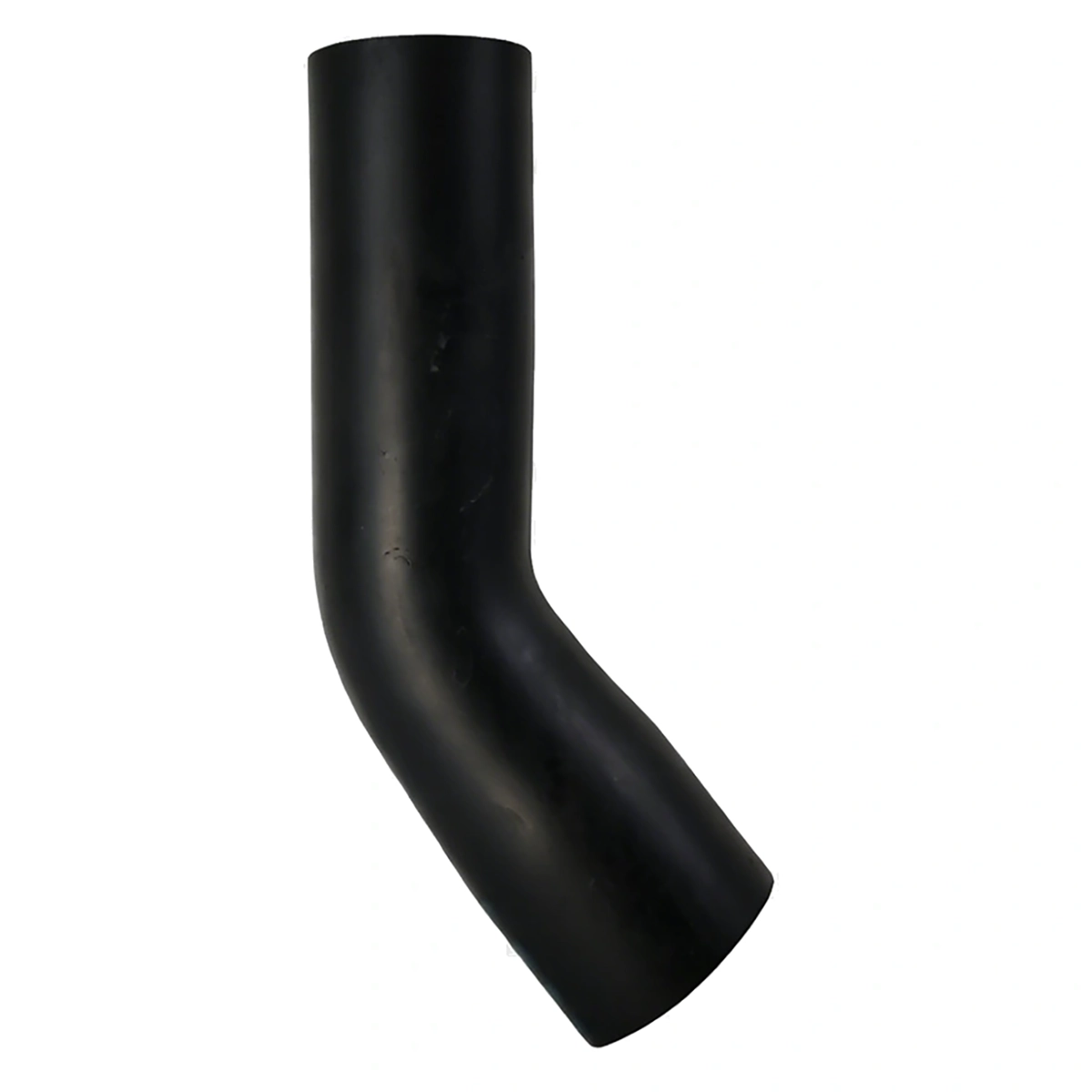

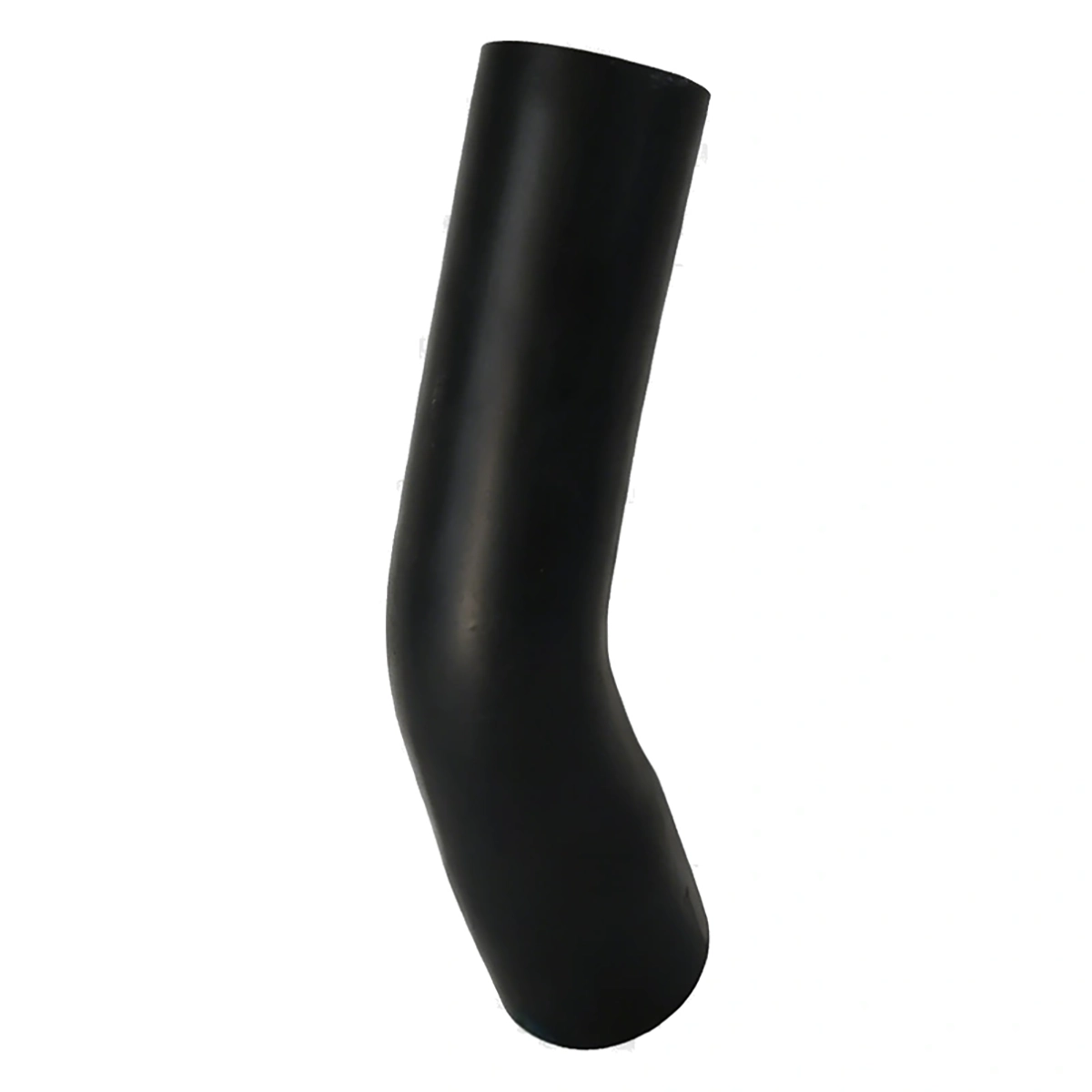

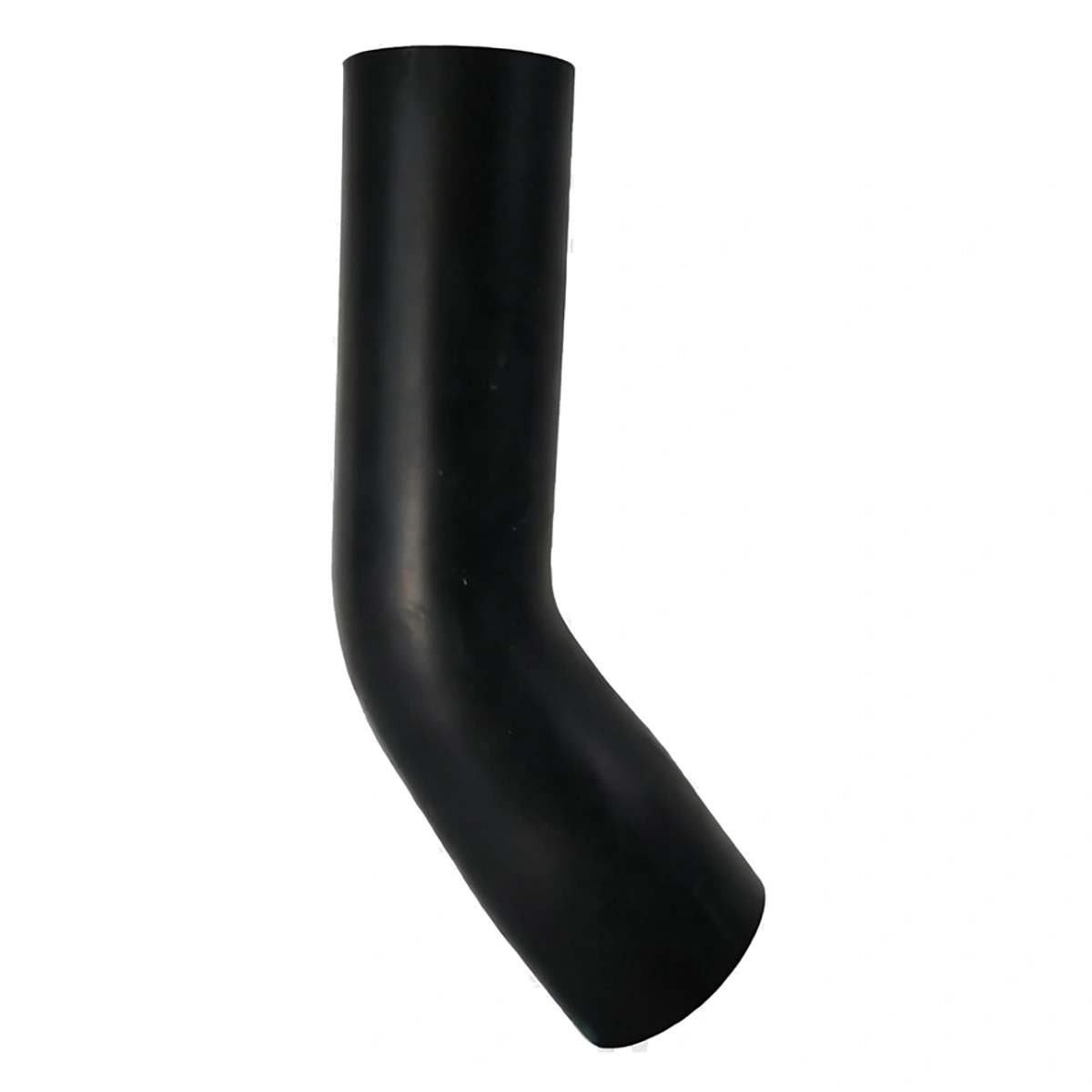

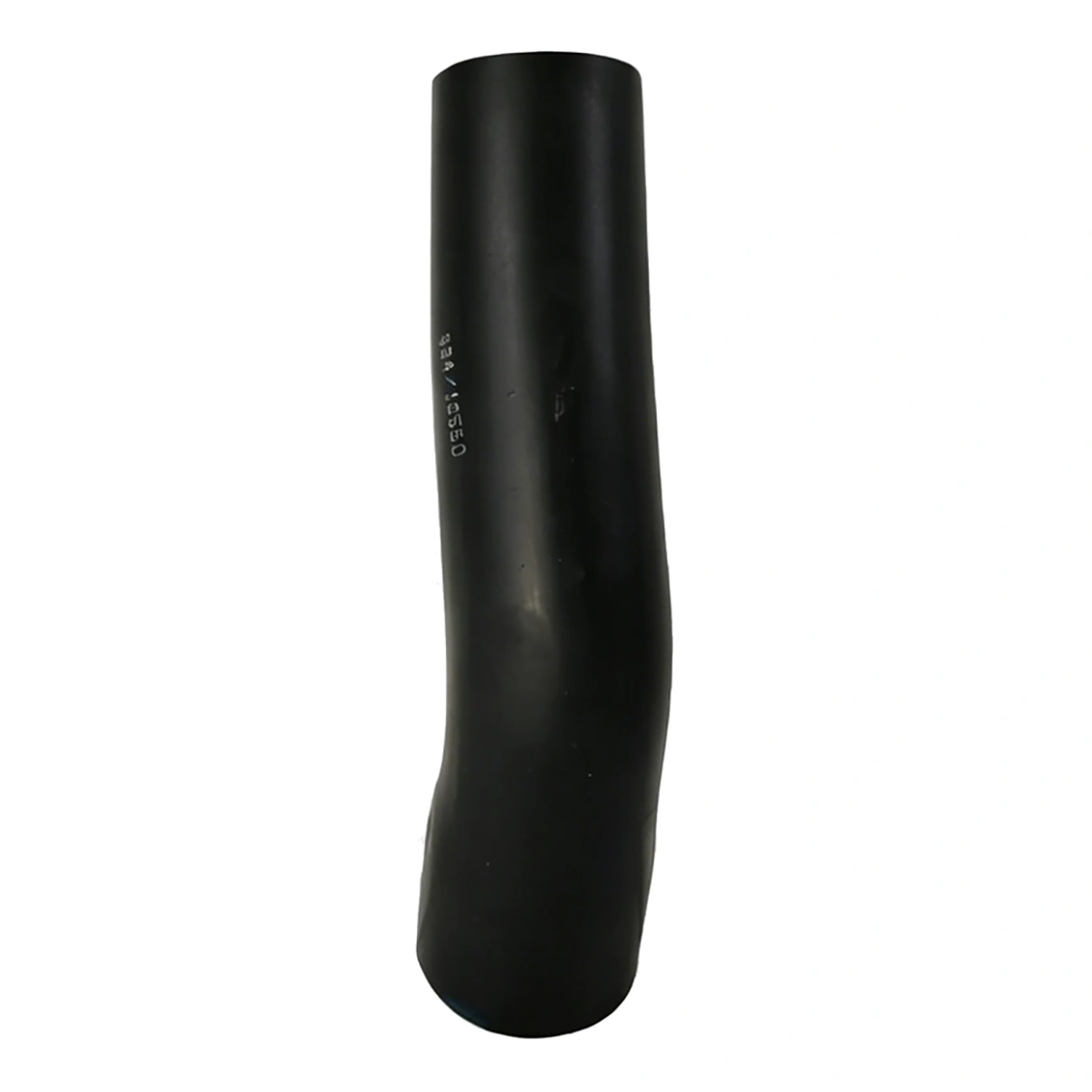

The GUS-834/10550 is a high-quality EPDM rubber straight radiator hose manufactured by GEARUP SUPPLY in Hungary, engineered for large-bore cooling system connections in JCB construction equipment. Constructed with synthetic fiber fabric reinforcement over an EPDM core, this hose delivers reliable performance in heavy-duty cooling circuits.
With an inner diameter of approximately 57-76mm (2.25″-3.0″) and a length of approximately 250-500mm (10″-20″), this straight hose handles standard cooling system pressures of 1-2 Bar (15-30 PSI). It operates reliably from -40°C to +125°C, with short-term tolerance up to +135°C.
Designed for water pump/thermostat housing to radiator large-bore connections, this hose is built to withstand the thermal cycling and chemical exposure typical of construction machinery cooling systems.
Key Features:
Material: High-grade EPDM rubber with synthetic fiber fabric reinforcement
Design: Straight non-molded hose for large-bore cooling circuits
Temperature Range: -40°C to +125°C (short-term +135°C)
Inner Diameter: 57-76mm for high-flow coolant circulation
Origin: Made in Hungary under strict quality control standards
